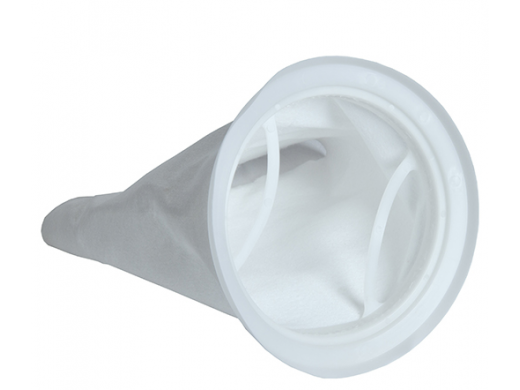

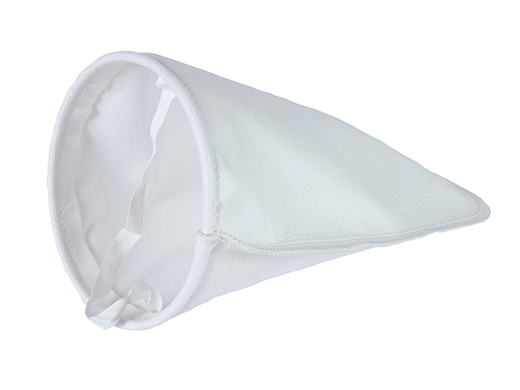

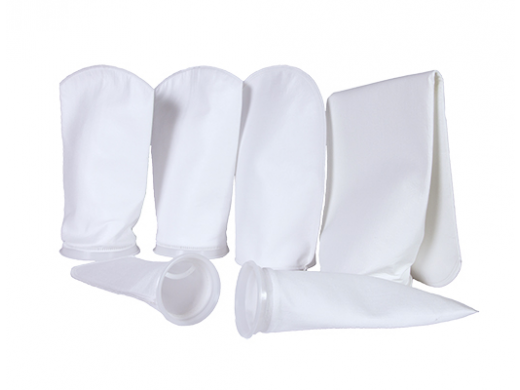

聚丙烯過濾袋具有良好的透氣性。強度高、耐磨並耐酸鹼腐蝕,可連續工作溫度於90℃，其性能不受影響。
聚丙烯過濾袋提供深度過濾和具有較高的固體停留能力性，它可以捕獲在不同深度的污染物達到過濾要求。
聚丙烯過濾袋在化學工廠、污水處理廠、食品工業中應用廣泛，過濾效率高達到99%以上。
Comparison of the Polypropylene fabric
| Fabric | Abrasion resistance | Anti weak acid | Anti strong acid | Anti weak alkali | Anti strong alkali | Temperature (℃) |
| PP (Polypropylene) |
Very good | Excellent | Excellent | Excellent | Excellent | 90-110 |
Specifications
| Itwm | Diameter (inch) |
Length (inch) |
Surface area (ft2) | Flow rate (GMP) |
| Size: 1 | 7” | 16” | 2.0 ft2 | 90 GMP |
| Size: 2 | 7” | 32” | 4.4 ft2 | 200 GMP |
| Size: 3 | 4” | 9” | 0.5 ft2 | 25 GMP |
| Size: 4 | 4” | 15” | 1.0 ft2 | 45 GMP |
Ordering Information
| Bag Material |
Micron Rating - µm |
- | Bag Size | Collar / Ring Type | - | Option |
| Example: PO |
25 | - | 2 | S | - | S |
| Polypropylene Needlefelt PO |
0.5 - 0.5µm 1 - 1µm 5 - 5µm 10 - 10µm 25 - 25µm 50 - 50µm 75 - 75µm 100 - 100µm 150 - 150µm 200 - 200µm 300 - 300µm |
- | 1: Ø7 x 17 inches L 2: Ø7 x 32 inches L 3: Ø4 x 9 inches L 4: Ø4 x 15 inches L |
F: Polypropylene Ring FE: Polyester Ring G: Polypropylene Ring X: Polypropylene Ring N: Nylon Ring S: Galvanized Steel Ring SS: Stainless Steel Ring #304 U: Draw String |
- | S: Sewn Bag, Collar H: Welded Bag, Welded Collar SH: Sewn Bag, Welded Collar HS: Welded Bag, Sewn Collar |
