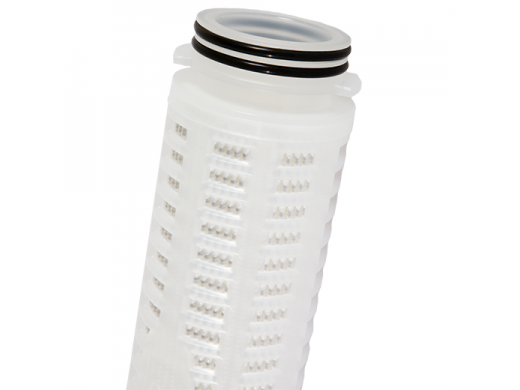

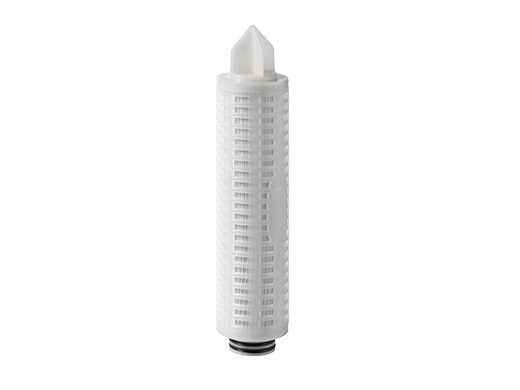

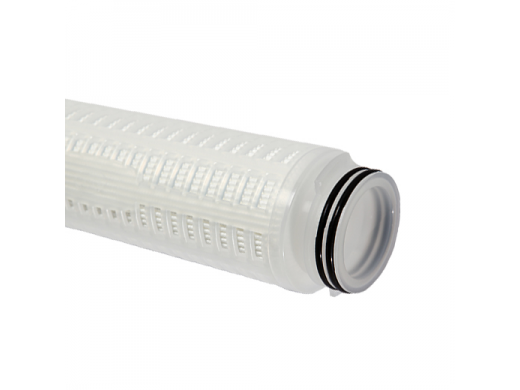

The PES membrane provides high contaminant capacity, mirrored asymmetric structure that ensures a lower pressure drop at a high flow rate and extended service life.
Features and Benefits
- High porous asymmetric membrane that ensure lower pressure drop, high flow rate and extended service life
- PES Membrane is inherently hydrophilic with excellent hydrolytic stability & chemical compatibility
- End caps and connectors are sealed by thermal bond, free from binder.
- Manufactured in clean room environment.
- Absolute retention ratings from 0.04 micron to 1.2 micron.
- 100% flushed with 18 Megohm -cm DI water and integrity tested
- Certificated by FDA
- Pore size Combinations : 0.04, 0.1, 0.2, 0.45, 0.65, 1.2 micron
- Membrane : Polyethersulfone Hydrophilic Membrane
- Support layers : Polypropylene
- Gaskets/O-Rings : EPDM, Silicone, Buna-N, Viton, PFA encapsulated Viton
- Lengths : 10", 20", 30", 40"
- End Caps : High strength Polypropylene
- Filtration Area : PESA 69 – 0.8m2 / 10” PESB 80 – 0.92M2 / 10”
- Inner Diameter : 28mm
- Outer Diameter : PESA - 69mm, PESB - 80mm
- Maximum operating forward pressure :
20℃: 5.5kg/cm2
80℃: 1.7kg/cm2
80℃: 1.7kg/cm2
- Maximum operating temperature : 80℃
- Sterilization :
Autoclave : 121℃, 30min, 10times
Steam : 121℃, 30min,10times
Hot water : 80℃, 30min, 30times
Steam : 121℃, 30min,10times
Hot water : 80℃, 30min, 30times
Applications
- PES Series for clean and rinse process in photoelectric industry.
- BOE, photoresists of filtration
- DI water system, Chemical & Beverage Filtration
PESA Initial Pressure Drop
Pressure Drop(kg/cm2) |
PESB Initial Pressure Drop
Pressure Drop(kg/cm2) |
Ordering Information
| Pei Ting Filter | OD | Micron Rating | Length | End Cap | O-ring / Gasket | Pre-Flush | Integrity Test |
| Ex : PES | B | 065 | 20 | P2 | E | A | B |
| PES Membrane Pleated Filter Cartridge | A = 69mm B = 80mm |
004 = 0.04 micron 010 = 0.1 micron 020 = 0.2 micron 045 = 0.45 micron 065 = 0.65 micron 120 = 1.2 micron |
10 = 10" 20 = 20" 30 = 30" 40 = 40" |
DO = Double Open End P2 = 222 / Flat P3 = 222 / Fin P4 = 226 / Flat P5 = 226 / Fin |
E = EPDM N = Buna N V = Viton S = Silicone T = PFA encapsulated Viton |
A=Non-Pre flush B=Pre flush with DI Water |
A=Non Integrity Test B= Integrity Test |
