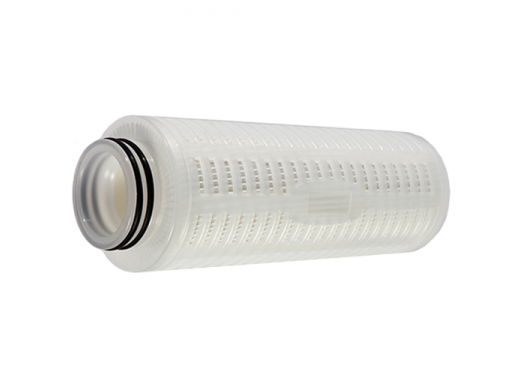

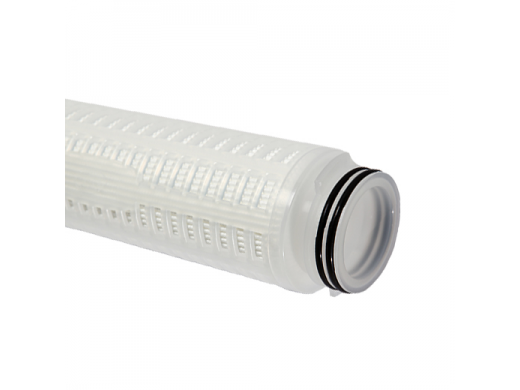

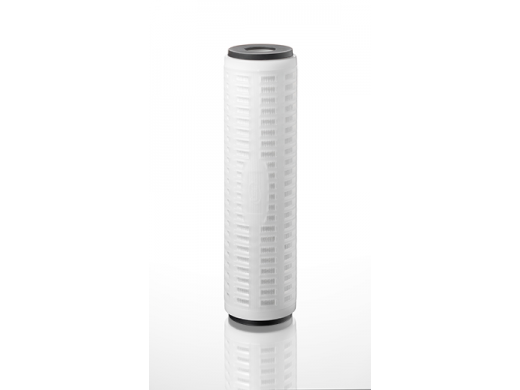

The Pei Ting series pleated filter cartridges with advanced pleat technology design that provides a true depth filtration for higher dirt loading capacity. This design technology maximizes the useful surface area of the filter.
Features and Benefits
- All polypropylene construction
- Advanced pleat technology design for extended service life and lower overall operation costs.
- End caps and connectors are sealed by thermal bond, free from binder.
- Manufactured in clean room environment.
- 100% flushed with 18 Megohm -cm DI water, TOC content is lower than 40ppb.
- Certificated by USP23 and FDA CFR Title 21.
Advanced pleat technology design
Specification
- Pore size Combinations : 0.2, 0.45, 1, 5, 10, 20, 50 micron
- Membrane : Polypropylene Melt Blown Fiber
- Support layers : Polypropylene
- Gaskets/O-Rings : EPDM, Silicone, Buna-N, Viton
- Lengths : 10", 20", 30", 40"
- End Caps : High strength Polypropylene
- Filtration Area : PMP A – 0.4m2 / 10” , PMP B – 0.49 M2 / 10”
- Inner Diameter : 28mm
- Outer Diameter : PMP A - 69mm , PMP B - 80mm
- Maximum operating forward pressure:
20℃ : 4.9kg/cm2
60℃ : 2.8kg/cm2
90℃ : 1.4kg/cm2
- Recommended replaceable pressure drop : 2.5kg/cm2
- Sterilization : 121℃, 30min, 10 times
- Maximum operating temperature : 90℃
- Food and Beverage
- Oil and Gas
- Pharmaceutics
- Paints AND Coatings
- Cosmetics
- Plating Solutions
- Prefiltration for RO
- Chemical Industry
| Pei Ting Filter | OD | Micron Rating | Length | End Cap | O-ring / Gasket | Pre-Flush | Pleat Type |
| Ex : PMP | B | 0020 | 20 | P2 | E | A | F |
| PP Pleated Filter Cartridge |
A = 69mm B = 80mm |
0020= 0.2 micron 0045 = 0.45 micron 0100 = 1 micron 0500 = 5 micron 1000 = 10 micron 3000 = 30 micron 5000 = 50 micron |
10 = 10" 20 = 20" 30 = 30" 40 = 40" |
DO = Double Open End P2 = 222 / Flat P3 = 222 / Fin P4 = 226 / Flat P5 = 226 / Fin |
E = EPDM N = Buna N V = Viton S = Silicone |
A=Non-Pre flush B=Pre flush with DI Water |
N=Non - APT Pleat F=APT Pleat |
