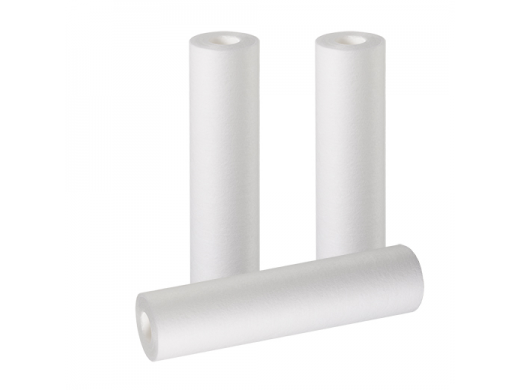

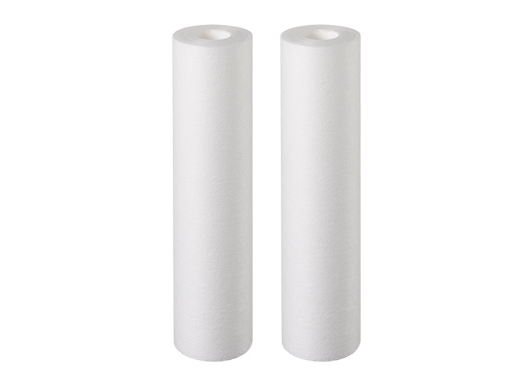

Melt Blown Cartridges are manufactured from 100% Polypropylene construction. The four-layers structure PP depth cartridge have a graded density pore structure that provides a true depth style filtration for higher dirt loading capacity which also ensures a longer service life and lower pressure drop.
FEATURES - BENEFITS
1 : Four layers structure cartridge.
2 : Multi-zone melt blown depth filter structure cartridge for maximum contaminant holding capacity and long filter service life.
3 : Absolute retention ratings from 0.5 to 100 microns.
4 : 100% polypropylene for compatibility with a wide range of process fluids.
5 : Cartridges are free of surfactants, binders and adhesives.
6 : All end configurations available
7 : All elements are made with FDA compliant material for food and beverage contact under CFR Title 21.
Application
- Microelectronics
- Water
- Food and Beverage
- Inks and Coatings
- Chemical/industrial
- Oil and Gas
- Cosmetics
Operation conditions
- Maximum operating forward pressure: 60℃: 1.8kg/cm2 20℃: 3.2kg/cm2
- Recommended replacement pressure drop: 1.5kg/cm2
- Maximum operating temperature: 60℃
- Specifications
| Media | Polypropylene |
| Micron ratings | 0.5, 1, 3, 5, 10, 25, 50, 75, 100 Micron |
| Dimensions | 9.87'', 10'', 20'', 30'', 40'' |
| Inner diameter | 28mm |
| Outer diameter | 63mm |
| Maximum Temperature | 60℃ |
| End Cap | Polypropylene |
Ordering Information
| Pei Ting Filter |
OD | Micron Rating | Length | End Cap | O-ring / Gasket |
| Ex : APO | A | 025 | 20 | P2 | E |
| Pinnacle Precision Absolute Rated PP Depth Filter | A = 63mm | A05 = 0.5 micron 001 = 1 micron 003 = 3 micron 005 = 5 micron 010 = 10 micron 025 = 25 micron 050 = 50 micron 075 = 75 micron 100 = 100 micron |
987 = 9.87" 10 = 10" 20 = 20" 30 = 30" 40 = 40" |
N = None End Cap DO = Double Open End P2 = 222 / Flat P3 = 222 / Fin P4 = 226 / Flat P5 = 226 / Fin |
E = EPDM N = Buna N V = Viton S = Silicone T = PFA encapsulated Viton A = PE gasket only |
